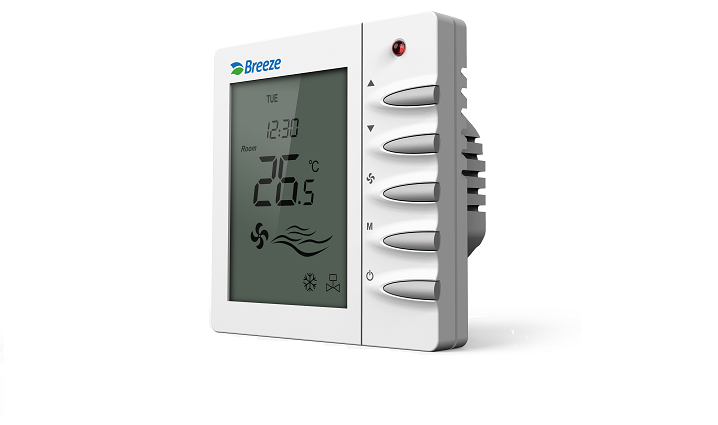

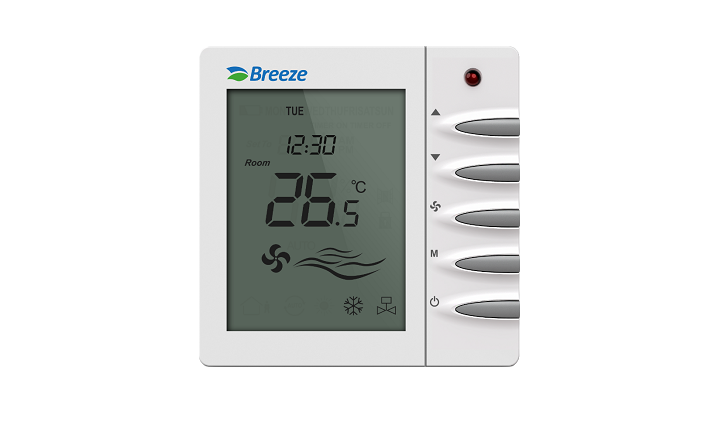

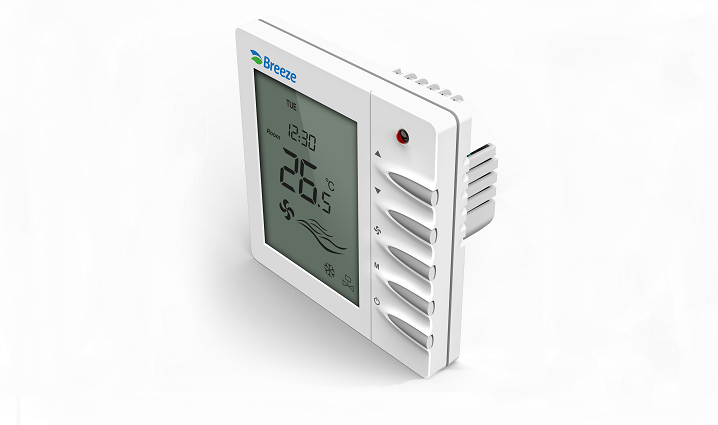

BC102-4ED

The BC102 thermostat with high definition LCD has very versatile features cover a broad range of applications

Adopt Double-IsolationTM technology to control Fan coil safely and efficiently

Super modern appearance design, suitable for once, hotel and residential buildings

Benifits

What Double-IsolationTM technology brings to you?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family
3. Extra & consistently equipment protection
Comfort:
Precise temperature control makes comfort environment.
Easy to install, easy to use
Energy Saving:
1. Up to 30% energy saving solution.
2. Run your system more efficient than other thermostats.
Smart:
Smart season auto changeover. Preheat function avoid any cold air blow in winter.

Features

Feature NEW INTELLIGENT THERMOSTAT
Model No BC102-4ED BC102-2AED
Supply Voltage 85~230Vac. 50/60Hz
Control Device 2&4-pipe FCU 2pipe FCU
Fan Control 0-10V EC Motor
Valve Control 1&2xOn/Off 1×0~10V
Heat/Cool Cool&Heat&Auto Cool/Heat
Remote Sensor Yes
Communication Optional
Hotel Card Yes
Backlight Blue
Temperature Display Celsius
Programmable Optional
Setpoint Range 5~35C
Temperature Display 0.5C
Ambiente Storage:-20C~60C, Operating:  0~50°C, Humidity:5~95%
Product Color White RAL9010
Cycling Fan Yes
Approval EN60730-1, CE Standard
Installation  Flush Mounting
Housing Material PC+ABS
IP Grade IP 30

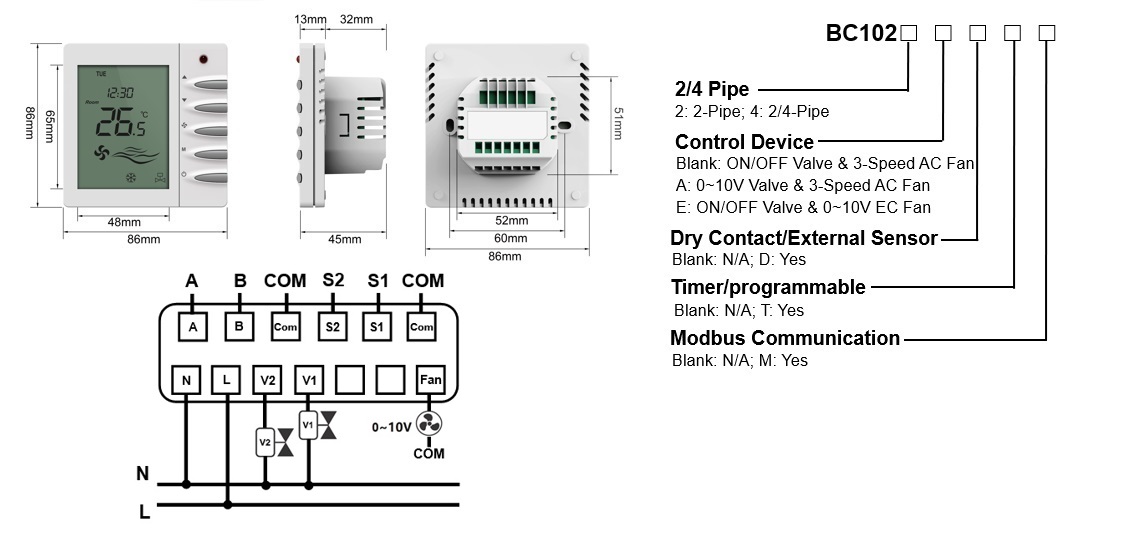

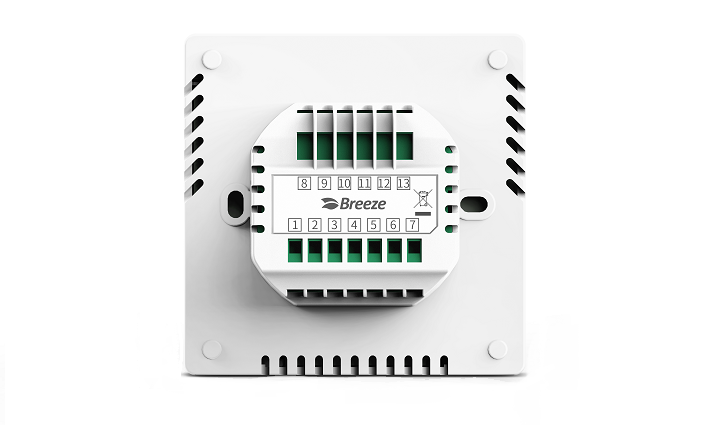

Terminals
