BC103-2AED

The BC103 thermostat with high definition LCD has very versatile features cover a broad range of applications

Adopt Double-Isolation technology to control Fan coil unit or VAV unit and keep your BMS system safely and efficiently

0~10V modulating signal accuracy control provides you a comfort environment.

Super modern appearance design, suitable for office hotel and all commercial and residential buildings

Benifits

What Double-IsolationTM technology brings to you?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family and the electronic circuit
3. Protect equipment consistently: extra protection technology prevent system burned or failure
Comfort:
Precise temperature control makes comfort environment.
Easy to install, easy to use, easy replacement to next new generation thermostat.
Energy Saving:
1. Up to 80% energy saving solution.
2. Run your system more efficient than other regular thermostats.
Smart:
Seasonal auto changeover by remote sensor attached to the water pipe.Preheat function avoid any cold air blow in winter.

Features

Feature NEW INTELLIGENT THERMOSTAT
Model No BC103S-2AED
Supply Voltage 85~230Vac /24Vac. 50/60Hz
Control Device 2pipe FCU
Fan Control EC Motor
Valve Control 0-10V Valve
Heat/Cool Cool&Heat&Auto
Remote Sensor Type NTC10K(remote sensor not included)
Communication Optional
Hotel Card Yes
Backlight White
Temperature Display Celsius/Fahrenheit
Programmable Optional
Setpoint Range 5~35C
Temperature Display 0.5C
Ambiente Storage:-20C~60C, Operating:  0~50°C, Humidity:5~95%
Product Color White RAL9010
Cycling Fan Yes
Approval EN60730-1, CE Standard

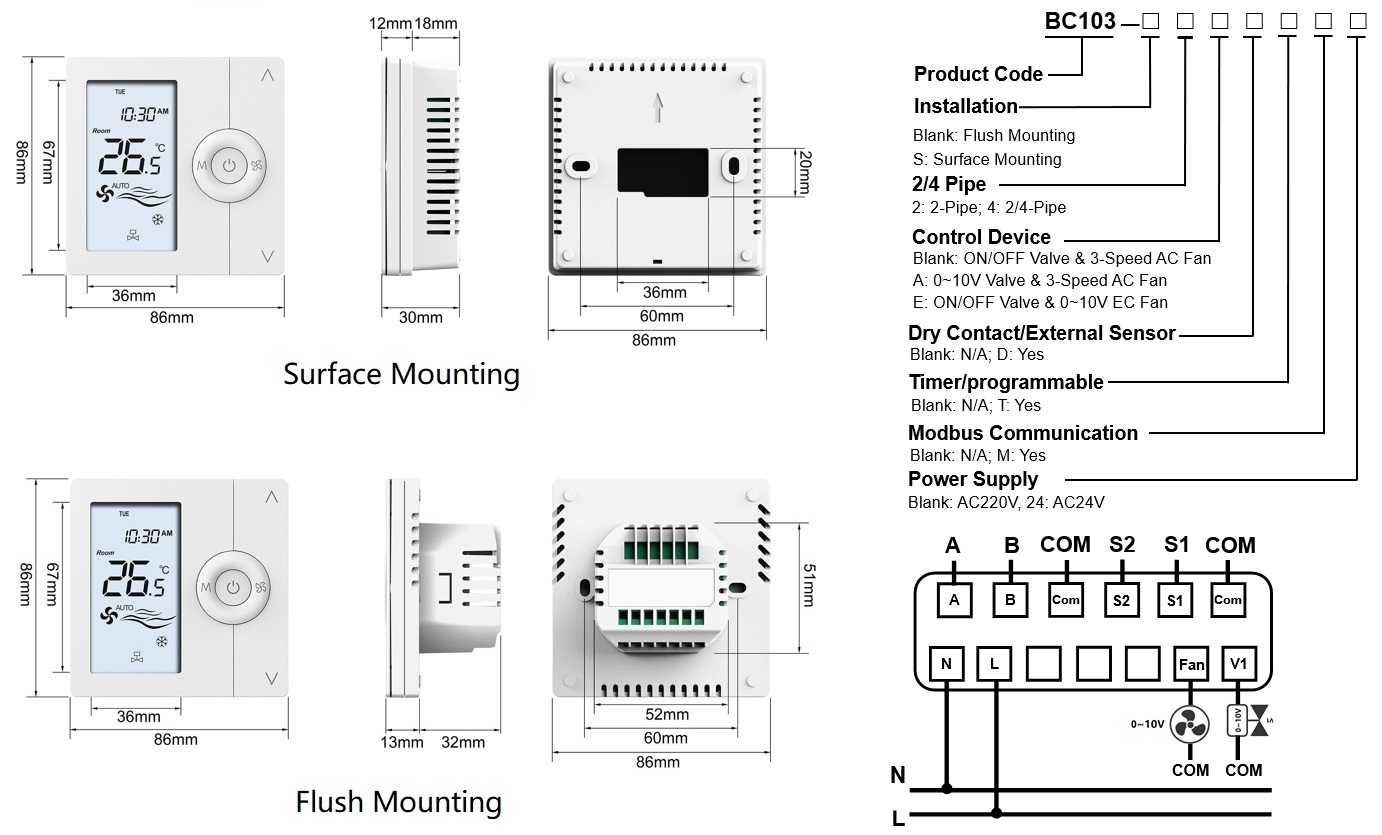

Installation  Flush/Surface Mounting
Housing Material PC+ABS
IP Grade IP 30

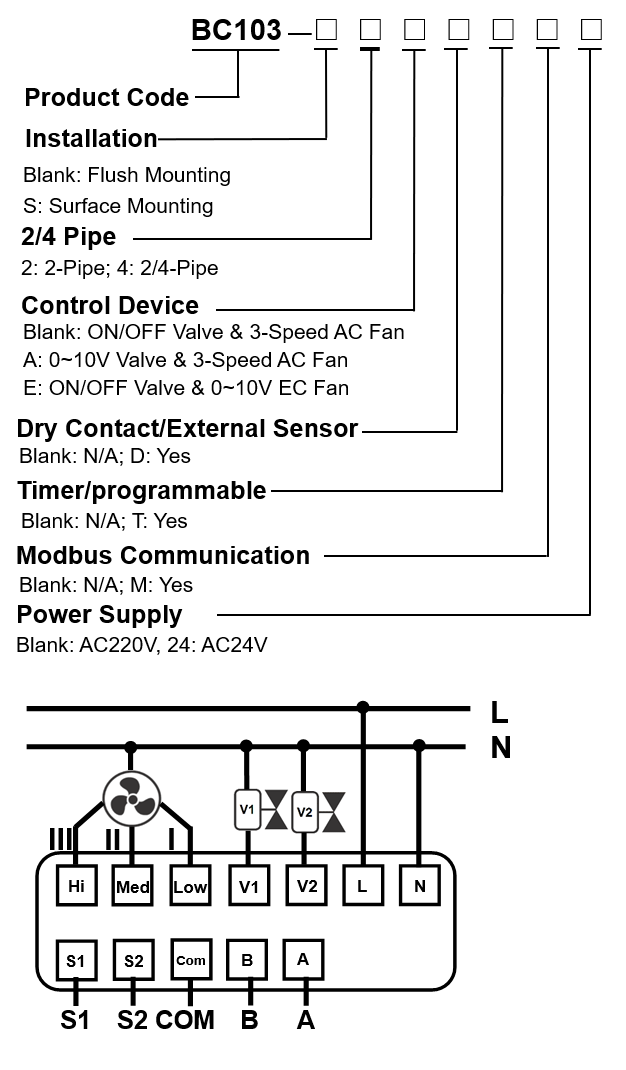

Terminals
