BC103-4AD

The BC103 thermostat with high definition LCD has very versatile features cover a broad range of applications

Adopt Double-Isolation technology to control Fan coil unit and VAV unit safely and efficiently with 0~10V modulating signal

Super modern appearance design, suitable for office, hotel and residential buildings

Benifits

What Double-IsolationTM technology brings to you?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family
3. Extra & consistently equipment protection
Comfort:
Precise temperature control makes comfort environment.
Easy to install, easy to use
Energy Saving:
1. Up to 30% energy saving solution.
2. Run your system more efficient than other thermostats.
Smart:
Smart season auto changeover. Preheat function avoid any cold air blow in winter.

Features

Feature NEW INTELLIGENT THERMOSTAT
Model No BC103-2AD BC103-4AD
Supply Voltage 85~230Vac /24Vac. 50/60Hz
Control Device 2pipe FCU&AHU 2pipe&4-pipe FCU
Switch Rating 5A at 230Vac(7A as optional)
Max.Fan Load 1A/3A inductive, 4A resistive
Fan Control 3-speed and Auto
Valve Control 1×0~10V 2×0~10V
Heat/Cool Cool/Heat Cool&Heat&Auto
Remote Sensor Yes
Communication Optional
Hotel Card Yes
Backlight White
Temperature Display Celsius/Fahrenheit
Programmable Optional
Setpoint Range 5~35C
Temperature Display 0.5C
Ambiente Storage:-20C~60C, Operating:  0~50°C, Humidity:5~95%
Product Color White RAL9010
Cycling Fan Yes
Approval EN60730-1, CE Standard

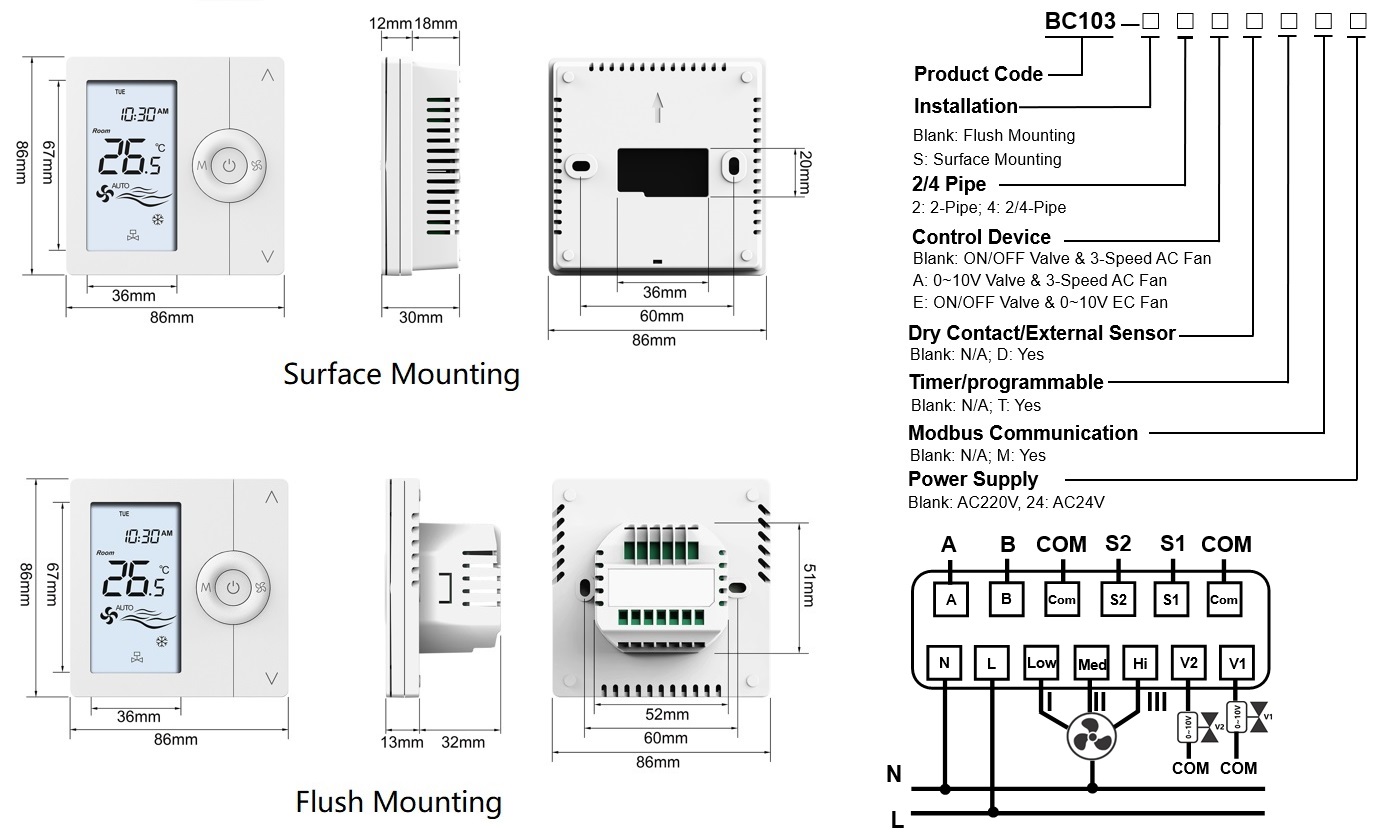

Installation  Flush/Surface Mounting
Housing Material PC+ABS
IP Grade IP 30

Terminals
