BC103-4DM

The NEW BC103 high definition LCD thermostat has very versatile and offer extensive features and cover a broad range of applications

Thermostats adopt Double-Isolation technology to make your BMS system safely and efficiently

Super modern appearance design, suitable for office, hotel and residential buildings

Benifits

What Double-IsolationTM technology brings to your BMS System?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family and the electronic circuit
3. Protect equipment consistently: extra protection technology prevent system burned or failure
Comfort:
Precise temperature control makes comfort environment.
Easy:
Easy to install, easy to use, easy replacement to next new generation thermostat.
Energy Saving:
1. Up to 50% energy saving solution.
2. Run your system more efficient than other regular thermostats.
Smart:
Seasonal auto changeover by remote sensor attached to the water pipe.Preheat function avoid any cold air blow in winter.

Features

Feature NEW INTELLIGENT THERMOSTAT
Model No BC103-4DM BC103-4ADM
Supply Voltage 85~230Vac (model number with-24 means 24Vac), 50/60Hz
Control Device 2&4-pipe FCU&DX Unit 2pipe&4-pipe FCU
Switch Rating 5A(7A as optional)
Max.Fan Load 1A/3A inductive, 4A resistive
Fan Control Single or 3-speed and Auto
Valve Control On/Off 2×0~10V
Heat/Cool Cool&Heat&Auto Cool&Heat&Auto
Remote Sensor NTC10k
Communication Modbus 4800,9600,19200baud rate
Hotel Card Yes
Backlight White
Temperature Display Celsius/Fahrenheit
Programmable Optional
Setpoint Range 5~35C
Temperature Display 0.5C
Ambiente Storage:-20C~60C, Operating:  0~50°C, Humidity:5~95%
Product Color White RAL9010
Cycling Fan Yes
Approval EN60730-1, CE Standard

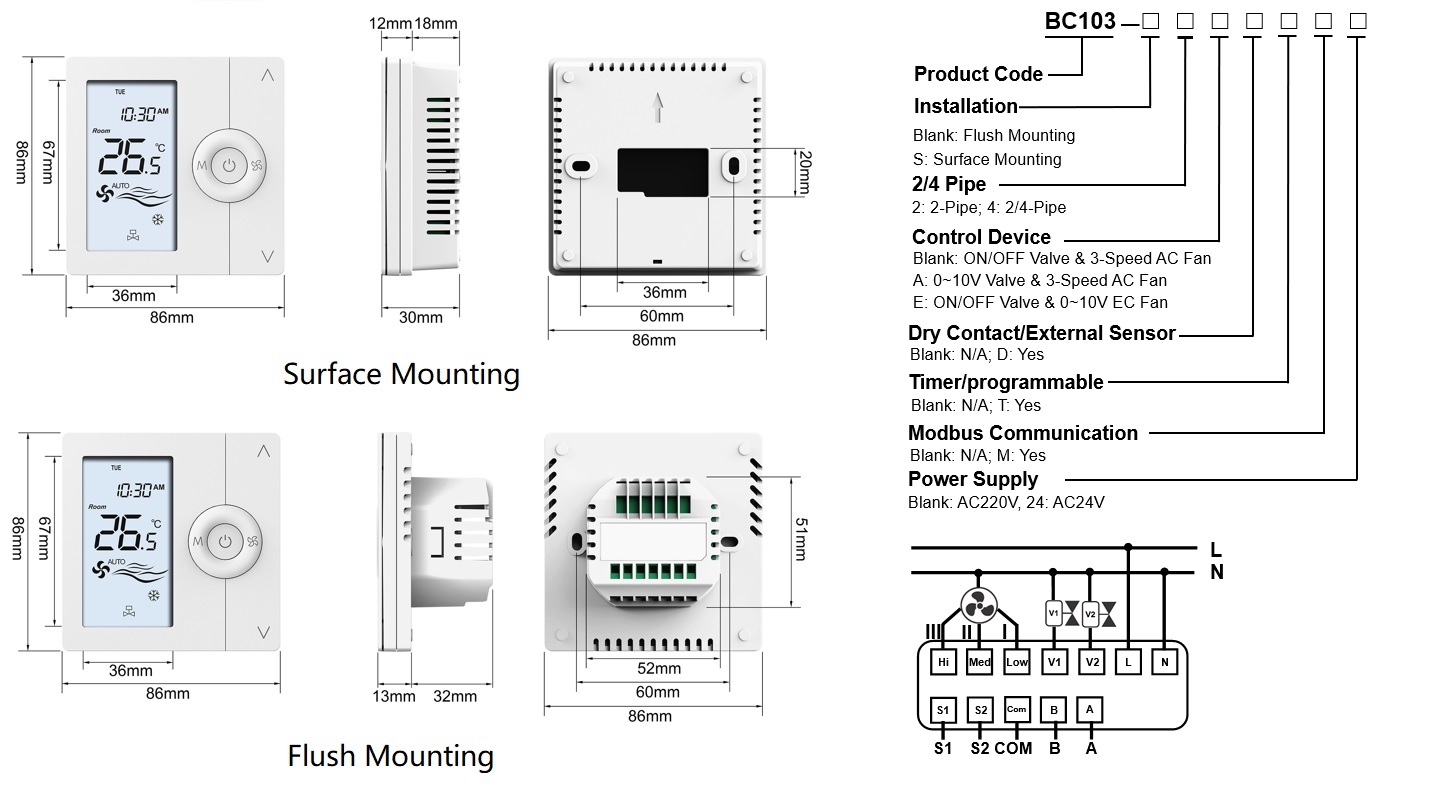

Installation  Flush/Surface Mounting
Housing Material PC+ABS
IP Grade IP 30
