BC105-4ED

The BC105 thermostat with luxury black pearl color touchscreen has very versatile features cover a broad range of applications

Adopt Double-Isolation technology to control Fan coil unit with EC Motor and keep your BMS system safely and efficiently

Super modern appearance design, suitable for office hotel and all commercial and residential buildings

Benifits

What Double-IsolationTM technology brings to you?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family and the electronic circuit
3. Protect equipment consistently: extra protection technology prevent system burned or failure
Comfort:
Precise temperature control makes comfort environment.
Easy to install, easy to use, easy replacement to next new generation thermostat.
Energy Saving:
1. Up to 80% energy saving solution.
2. Run your system more efficient than other regular thermostats.
Smart:
Seasonal auto changeover by remote sensor attached to the water pipe.Preheat function avoid any cold air blow in winter.

Features

Model No BC105-4ED
Supply Voltage 85~230Vac /24Vac. 50/60Hz
Control Device 2pipe&4-pipe FCU
Fan Control EC Motor
Valve Control 2xOn/Off Valve
Heat/Cool Cool&Heat&Auto
Remote Sensor Type NTC10K(remote sensor not included)
Communication Modbus as Option
Hotel Card Yes-Dry contact(window/door/PIR sensor)
Backlight Black&White
Temperature Display Celsius
Programmable Optional
Setpoint Range 5~35C
Temperature Display 0.5C
Ambiente Storage:-20C~60C, Operating:  0~50°C, Humidity:5~95%
Product Color White RAL9010
Cycling Fan Yes
Approval EN60730-1, CE Standard

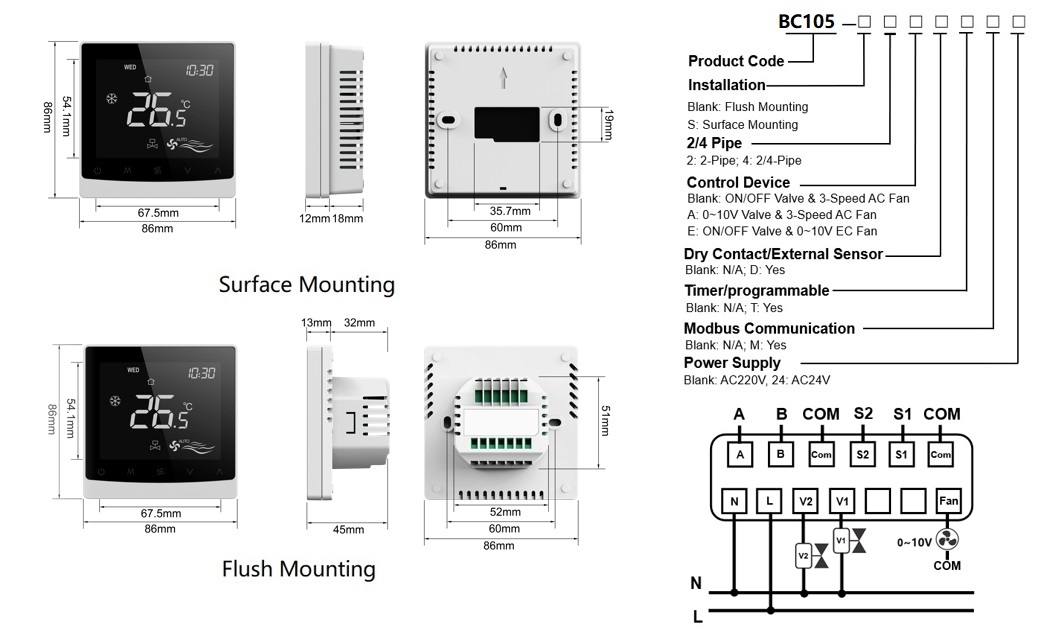

Installation  Flush/Surface Mounting
Housing Material PC+ABS
IP Grade IP 30

Terminals
