BC105-AC

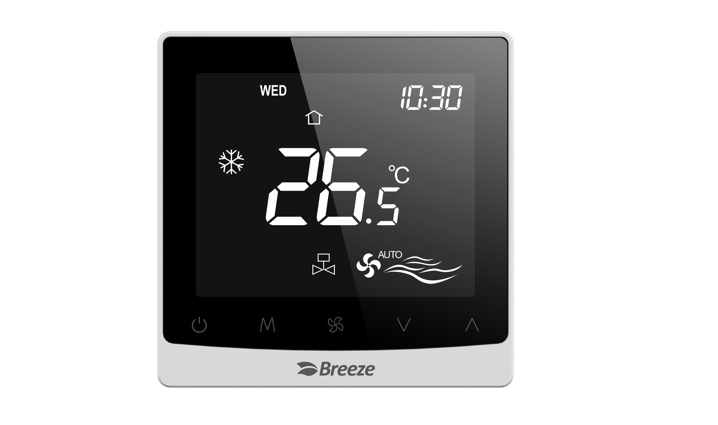

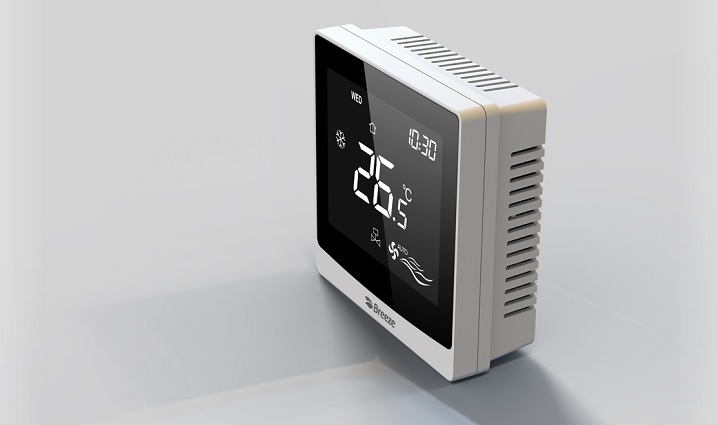

The BC105 thermostat with high definition LCD has very versatile features cover a broad range of applications

Adopt Double-Isolation technology to make your BMS system safely and efficiently

Super modern appearance design, suitable for office, hotel and residential buildings

Benifits

What Double-IsolationTM technology brings to your BMS System?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family and the electronic circuit
3. Protect equipment consistently: extra protection technology prevent system burned or failure
Comfort:
Precise temperature control makes comfort environment.
Easy to install, easy to use, easy replacement to next new generation thermostat.
Energy Saving:
1. Up to 30% energy saving solution.
2. Run your system more efficient than other regular thermostats

Features

Feature NEW INTELLIGENT THERMOSTAT
Model No BC105S-AC
Supply Voltage 85~230Vac /24Vac. 50/60Hz
Cooling Control Single/Double Compressor
Heating Control Single/Double Heater
Switch Rating 5A (7A as optional)
Max.Fan Load 1A/3A inductive, 4A resistive
Fan Control Single Speed
Heat/Cool Cool/Heat
Remote Sensor Yes
Communication Optional
Hotel Card Yes
Backlight White
Temperature Display Celsius/Fahrenheit
Programmable Optional
Setpoint Range 5~35C
Temperature Display 0.5C
Ambiente Storage:-20C~60C, Operating:  0~50°C, Humidity:5~95%
Product Color White RAL9010
Cycling Fan Yes
Approval EN60730-1, CE Standard

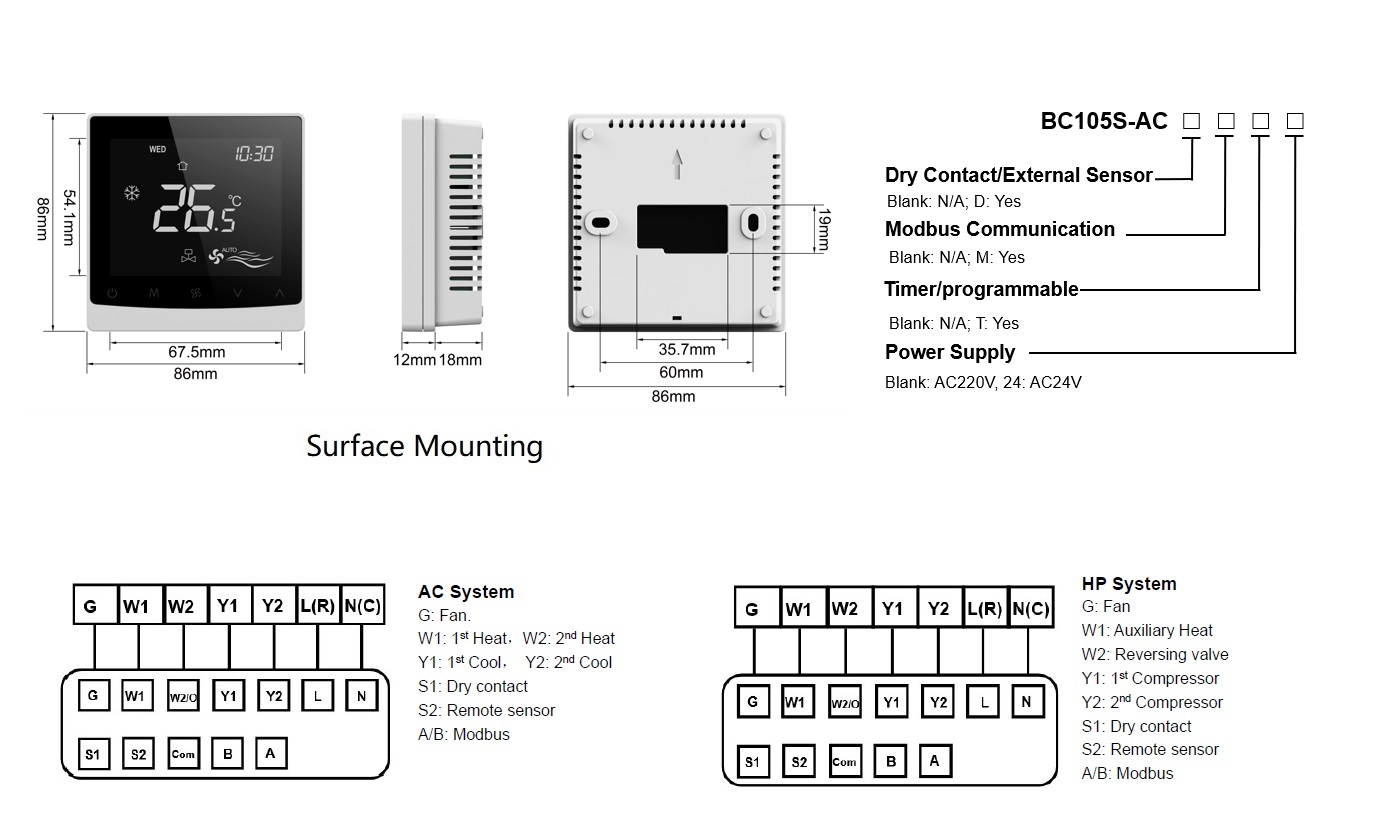

Installation  Surface Mounting
Housing Material PC+ABS
IP Grade IP 30

Terminals
