BC107-2/4

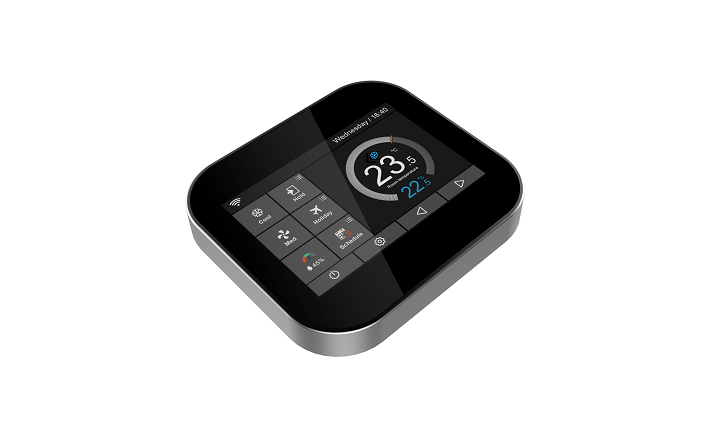

The BC107 series are the luxury TFT colorful touch screen programmable thermostats, offer extensive features and cover a broad range of applications

Thermostats adopt Double-Isolation technology to control Fan coil unit safely and efficiently

Luxury design and friendly user interface which are suitable for high end offices, 5-star hotels and luxury commercial and residential buildings

Benefit

What Double-IsolationTM technology brings to you?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family and electronic circuit
3. Protect equipment consistently: extra protection technology prevent system burned or failure
Comfort:
Precise temperature control makes comfort environment.
Easy:
Big TFT colorful Touch screen makes thermostat operation very easy. Easy to read and easy to install for every installer
Energy Saving:
1. Up to 35% energy saving solution.
2. Run your system more effecient than other regular thermostats.

Feature

Feature Luxry Color Touch Screen
Model No BC107-2 BC107-4
Supply Voltage 85~230Vac/24Vac, 50/60Hz
Control Device 2-pipe Fan coil unit 4-pipe Fan coil unit
Switch Rating 5A
Max.Fan Load 1A inductive, 3A resistive
Fan Control 3-speed and Auto
Valve/Compressor On/Off valve
Heat/Cool Cool/Heat/Vent
Screen Display 3.5 inches Colorful Touch Screen
User Interface 320*480Pixel/Capacitive touch
HotelCard N/A
Communication Optional
Temperature Format Celsius
Programmable 7days/5+2days/Non-programmable
Setpoint Range 5~35°C
Temperature Display Accuracy: 0.1°C
Temperature Control Accuracy: 0.5°C
Ambiente Storage:-20°C~60°C, Operating: 0~50°C, Humidity:5~95%
Product Color White/Black
Cycling Fan Yes
Approval II as per EN60730-1, CE Standard
Product Size PC+ABS
Installation Flush/Surface Mounting
Housing Material PC+ABS / poly blend – UV stabilised and fire rated
IP Grade IP 30

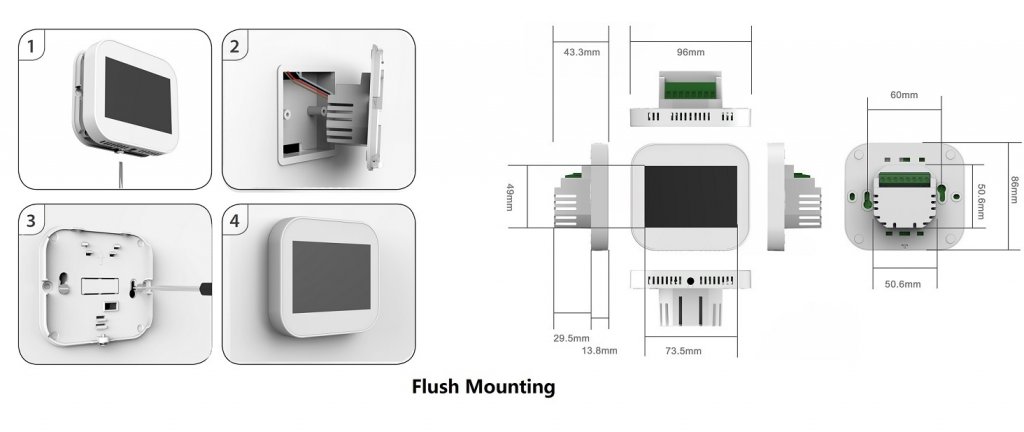

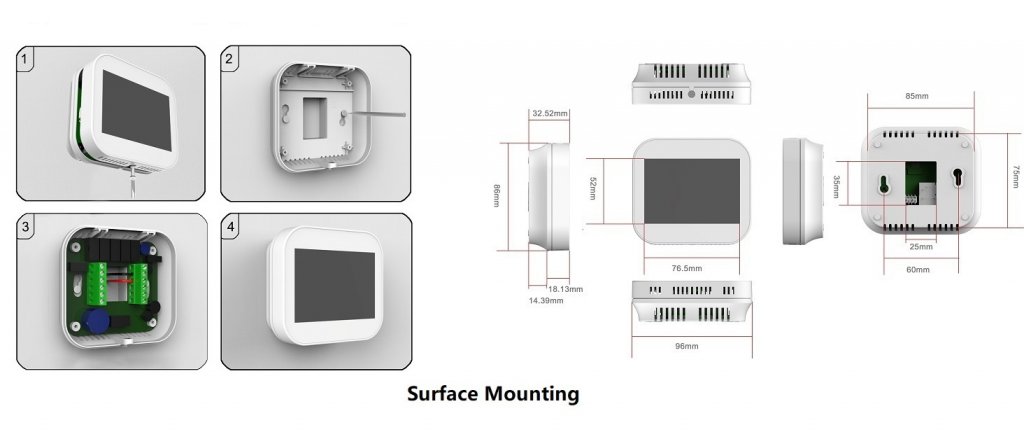

Installation and Dimension
