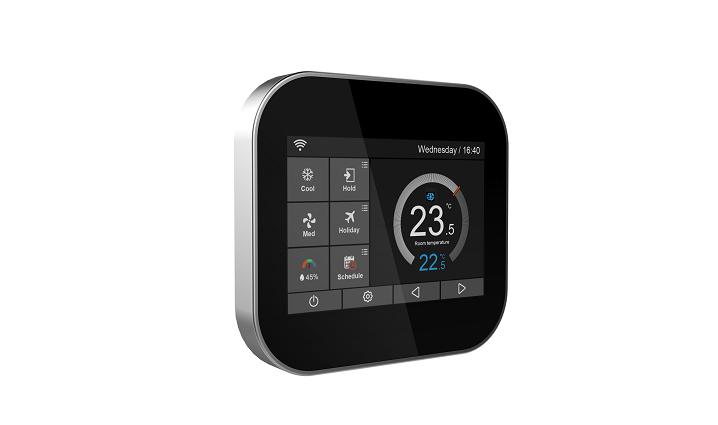

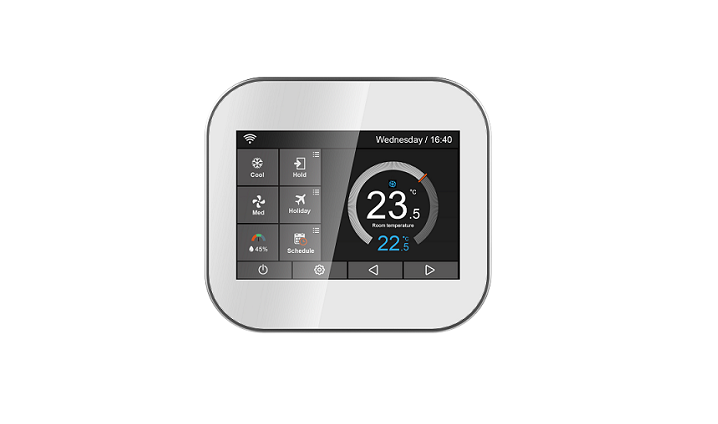

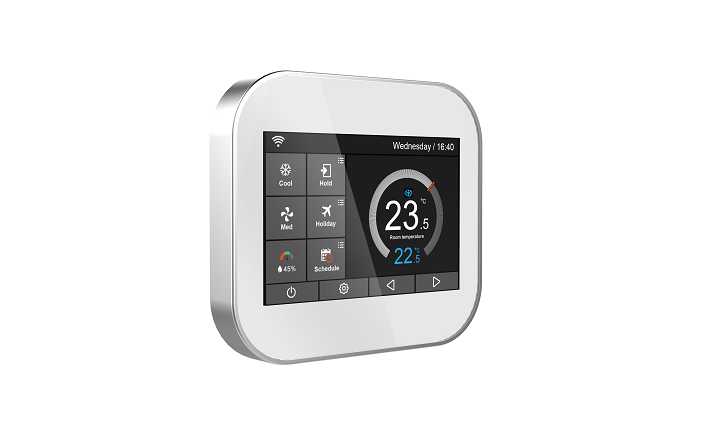

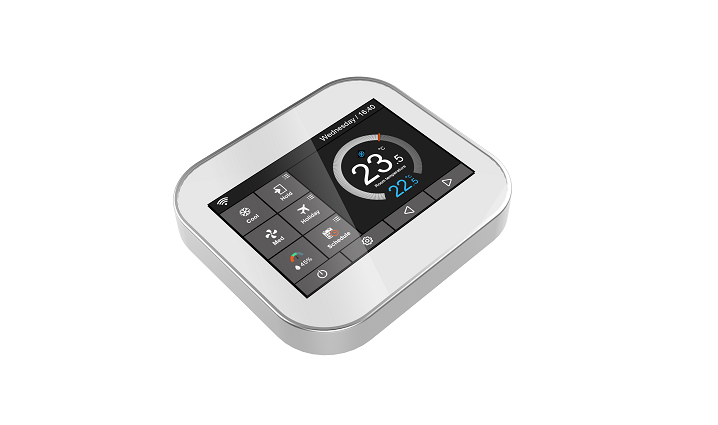

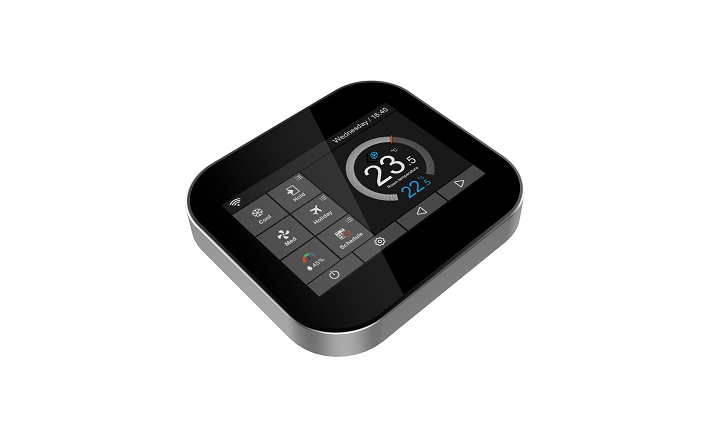

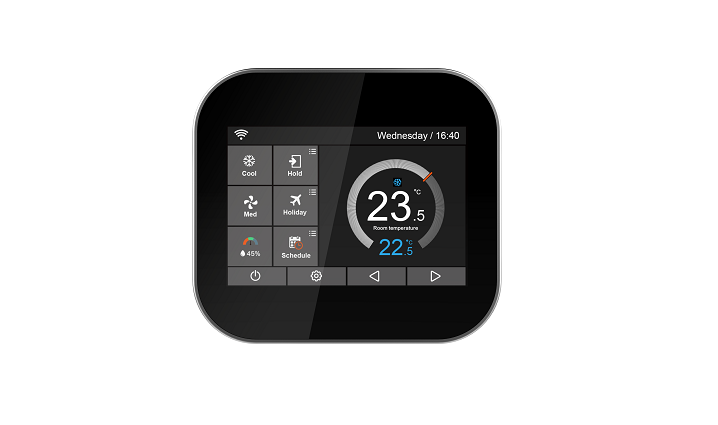

BC107-4E

The BC107 series are the luxury TFT colorful touch screen programmable thermostats, offer extensive features and cover a broad range of applications

Thermostats adopt Double-Isolation technology to control EC motor Fan coil unit with ON/OFF valve safely and efficiently

Luxury design and friendly user interface which are suitable for high end offices, 5-star hotels, luxury commercial and residential buildings

Benefit

What Double-IsolationTM technology brings to you?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family and electronic circuit
3. Protect equipment consistently: extra protection technology prevent system burned or failure
Comfort:
Precise temperature control makes comfort environment.
Easy:
Big TFT colorful Touch screen makes thermostat operation very easy. Easy to read and easy to install for every installer
Energy Saving:
1. Up to 80% energy saving solution.
2. Run your system more effecient than other regular thermostats.

Feature

Feature Luxry Color Touch Screen
Model No BC107-4E
Supply Voltage 85~230Vac/24Vac, 50/60Hz
Control Device 2&4-pipe Fan coil unit
Fan control Ec Motor
Valve Control Two On/Off valves
Heat/Cool Cool & Heat & Auto
Remote Sensor Type NTC10K (remote sensor not included)
Screen Display 3.5 inches Colorful Touch Screen
User Interface 320*480 Pixel/Capacitive touch
Communication N/A
Temperature Format Celsius
Programmable 7days/5+2days/ Non-programmable
Setpoint Range 5~35C
Temperature Display Accuracy: 0.1°C
Tenperature Control Accuracy: 0.5°C
Ambiente Storage:-20C~60C, Operating: 0~50°C, Humidity:5~95%
Product Color White/Black
Cycling Fan Yes
Approval EN60730-1, CE Standard
Installation Flush/Surface Mounting
Housing Material PC+ABS / poly blend – UV stabilised and fire rated
IP Grade IP 30

Dimension
