BC203-E

The BC203-E series are Non-programmable thermostats for 16A Electric/Cable Heating control

Thermostats adopt Double-Isolation technology to make your heating system effciency and saftey.

New appearance and functions are suitable for residential buildings and offices, hotels and all commercial buildings

Feature

What Double-IsolationTM technology brings to you?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family and electronic circuit
3. Protect equipment consistently: extra protection technology prevent system burned or failure
Comfort:
Precise temperature control provides you a comfort environment.
Easy:
Easy to install
Easy to read and operate
Energy Saving:
1. Up to 30% energy saving solution.
2. Run your system more efficient than other regular thermostats.

Feature
Model No BC203-E
Supply Voltage 85~230Vac ,50/60Hz
Control Device Electric/Cable
Switch Rating 16A at 230Vac
Temperature Range 5~35C
Prrogrammable Non-programmable
Temperature Accuracy ±1°C
Control Accuracy ±0.5°C
Sensor Temperature Sensor NTC10K
Temperature Display Accuracy: 0.5°C
Tenperature Control Accuracy: 1°C
Remote Sensor Remote sensor
Backlight White
Output 230V
Communication No
Ambiente Storage:-20°C~60°C, Operating: 0~50°C, Humidity:5~95%
Product Color White
Approval II as per EN60730-1, CE Standard
Environmental
conditions
Storage Climatic conditions:As per IEC 60721-3-1, Class 1K3
Transport Climatic conditions:As per IEC 60721-3-2, Class 2K3
Operation Climatic conditions:As per IEC 60721-3-3,Class 3K5
Product Size Flush Mounting–H86XW86XD13.4 mm
Installation Flush Mounting
Housing Material PC+ABS
IP Grade IP 20

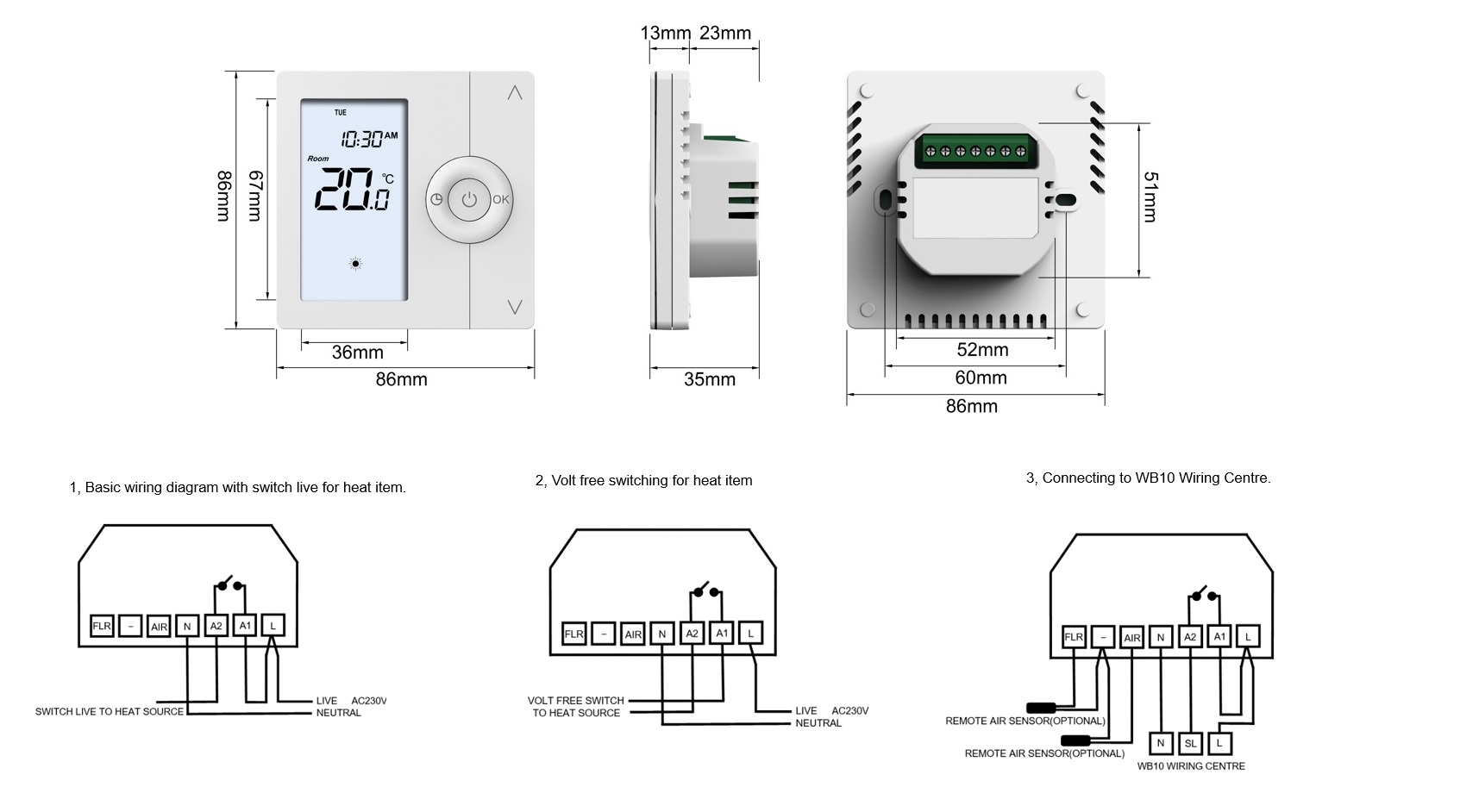

Dimension & Model No
