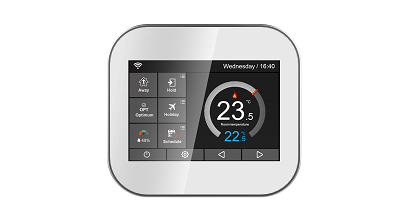

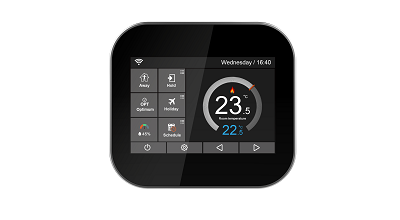

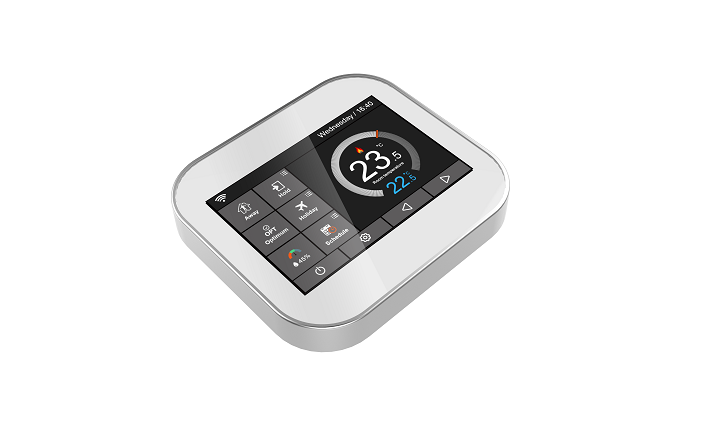

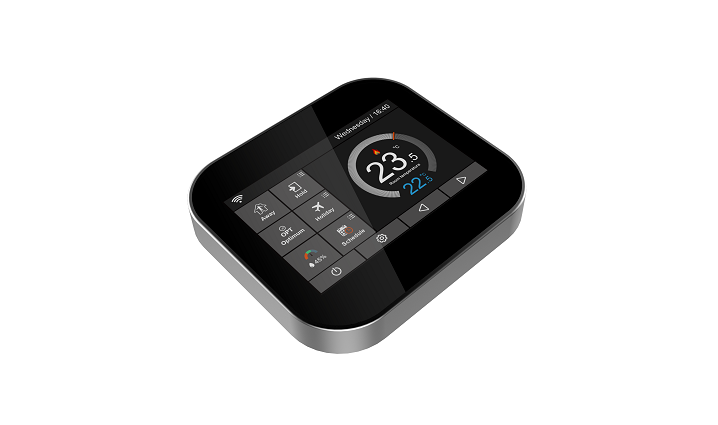

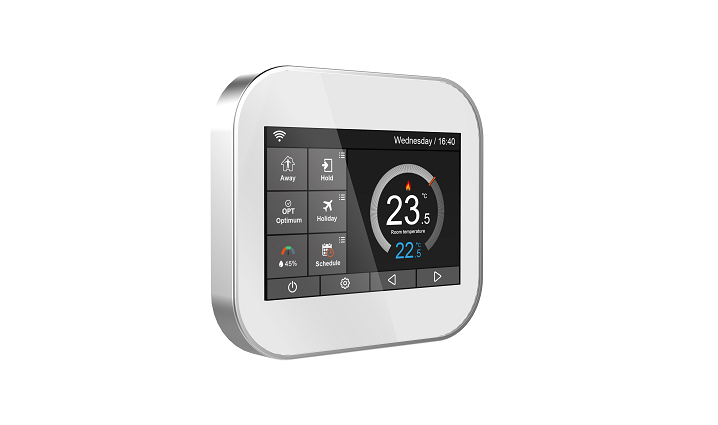

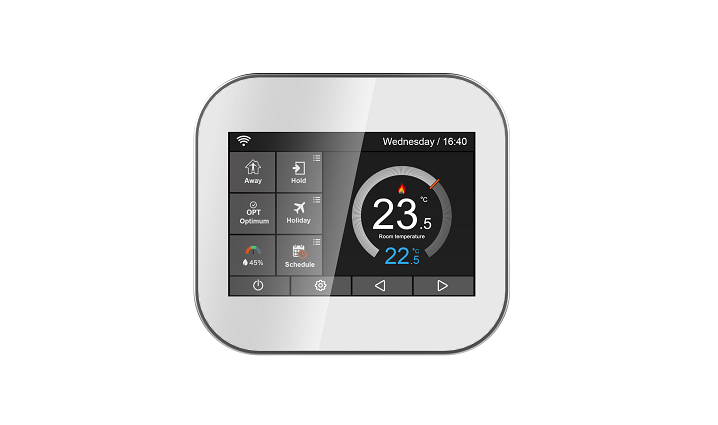

BC207W-HE

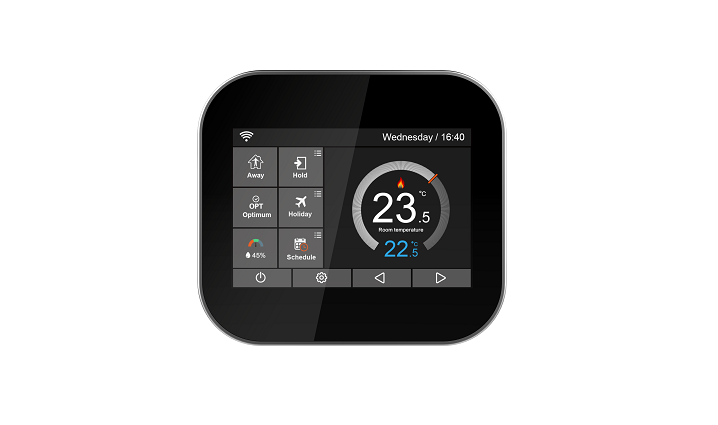

The BC207 series are the luxury TFT colorful touch screen programmable WIFI thermostats for electric heating system control

Thermostats adopt Double-Isolation technology to make your heating system effciency and saftey.

Luxury design and friendly user interface which are suitable for high end offices, 5-star hotels and all luxury commercial and residential buildings

What Double-IsolationTM technology brings to you?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family and electronic circuit
3. Protect equipment consistently: extra protection technology prevent system burned or failure
Comfort:
Precise temperature control makes comfort environment.
Easy:
Big TFT colorful Touch screen makes thermostat operation very easy. Easy to read and easy to install for every installer
Energy Saving:
1. Up to 50% energy saving solution.
2. Run your system more effecient than other regular thermostats.

Feature

Feature Luxry Color Touch Screen
Model No BC207W-HE
Supply Voltage 85~230Vac ,50/60Hz
Control Device Electric Heating
Switch Rating 16A at 230Vac
Screen Type 3.5inches Colorful Touch Screen
Screen Display 320*480 Pixel/Capacitive touch
Language English / Chinese / Spain / Italian / Russian / Polish / Czech / German / French
Temperature Range 5~35C
Humidity Sensor ±3%
Timer Mode Yes
Remote Sensor Remote sensor & Floor Sensor
Temperature Format Celsius
Communication WIFI 2.4GHz
Programmable 7days/5+2days/Non-programmable
Output Switch Live
Sensor Temperature Sensor NTC10K
Temperature Display Accuracy: 0.1°C
Tenperature Control Accuracy: 0.5°C
Ambiente Storage:-20°C~60°C, Operating: 0~50°C, Humidity:5~95%
Product Color White/Black
Approval II as per EN60730-1, CE Standard
Communication No
Installation Flush/Surface Mounting
Housing Material PC+ABS / poly blend – UV stabilised and fire rated
IP Grade IP 30
