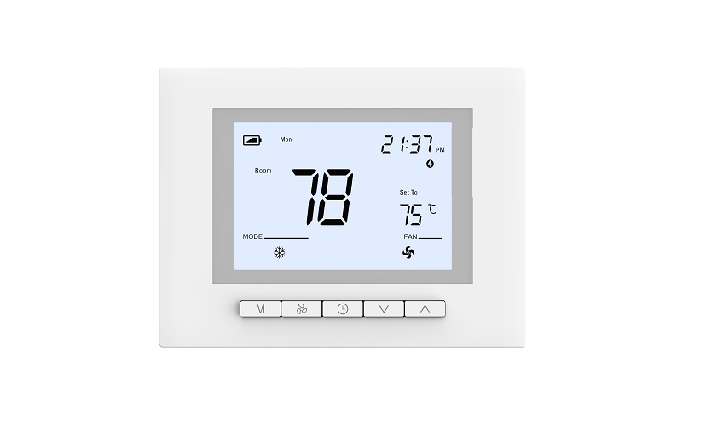

BC513

The BC503 series are the luxury big LCD screen programmable thermostats for North American market

Thermostats controls Heat pump, Furnance, PTAC, Duct system

Luxury design and friendly user interface which are suitable for high end offices, 5-star hotels and luxury commercial and residential buildings

Benefit

What Double-IsolationTM technology brings to you?
Safe:
1. Safe installation: reduce 50% installation failure rate
2. Safe to use: new technology to protect your family and electronic circuit
3. Protect equipment consistently: extra protection technology prevent system burned or failure
Comfort:
Precise temperature control provides you a comfort environment.
Easy:
Easy to install
Easy to read and operate
Energy Saving:
1. Up to 50% energy saving solution.
2. Run your system more efficient than other regular thermostats.

Feature

Feature
Model No BC513
Supply Voltage 24Vac, 50/60Hz
Control Device Upto 3H/2C Heat Pump, PTAC, Coventional AC, Electric/Gas/Oil Furnace
Using Area Residential and Commercia
Screen Type Big LCD Screen with White Backlight
Screen Display 320*480 Pixel/Capacitive touch
Language English
Temperature Range 41-95 °F(5~35°C)
Temperature Format Fahrenheit
Backlight White
Outdoor Sensor Yes
Prrogrammable 7days/5+2days/ Non-programmable
Mode Change Heat/Cool/Auto
Fan Control Auto/On
Temperature Display Accuracy: 1F
Tenperature Control Accuracy: 1F
Ambiente Storage:-20°C~60°C, Operating: 0~50°C, Humidity:5~95%

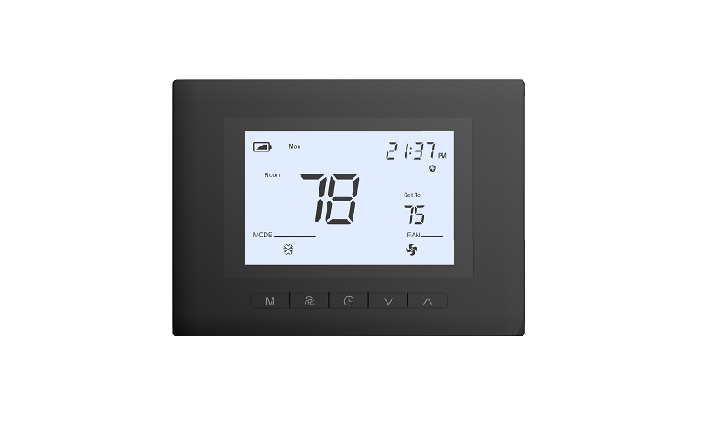

Product Color White/Black
Battery Yes
Product Size H90XW125XD25.8mm
Installation S-Surface Mounting
Housing Material PC+ABS / poly blend – UV stabilised and fire rated
IP Grade IP 40

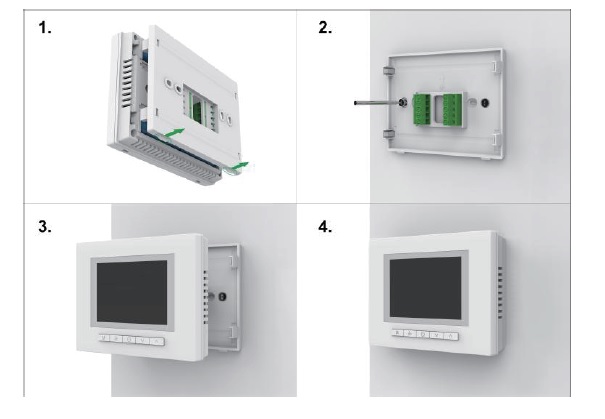

Installation
