A goodheating equipment. Installing thermostats by themselves has also become the mainstream, but please pay attention , The installation of the thermostat also has a certain technical content. If possible, let a professional person to help you install it. If you are confident in your own installation technology, then please refer to my following suggestions, while ensuring your own safety Install the thermostat thermostat can help our family save energy. Now more and more people choose to install thermostats in their homes to control cooling or
1, Voltage: Before buying a thermostat, check the household voltage in your area. The voltage varies greatly from region to region. The US uses more 24V voltage. Most European regions use 220V, and some regions use 240v voltage. After confirmation, select the thermostat according to your voltage to avoid damage to the thermostat and equipment due to voltage inconsistencies.

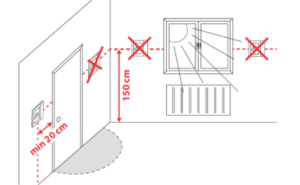

2, Mount the room thermostat on the conduit box. Do not mount on a wall in niches or bookshelves, behind curtains, above or near heat sources. Mount about 1.5 m above the floor.
Devices must be mounted on clean, dry indoor place without direct airflow from a heating / cooling device, and not be exposed to dripping or splashing
Before removing the front cover, disconnect the power supply.Wiring, protection and earthing must be installed in compliance with local regulations.
3，Installation steps
①Confirm that the thermostat accessories are intact, and turn on the power to confirm that the LCD display is normal.
②Turn off the power, For the convenience of installation, the first step is to wire the volt-free wires, low-voltage wires then high-voltage wires. Check the wires are property connected.
③Fix the thermostat on the wall with screws to complete the installation. If the wall is uneven, you need to purchase a cassette to ensure that the thermostat is even Devices must be mounted on clean, dry indoor place without direct airflow from a heating / cooling device, and not be exposed to dripping or splashingBefore removing the front cover, disconnect the power supply.Wiring, protection and earthing must be installed in compliance with local regulations.
④If it is a wifi thermostat, you need to test the usability of the thermostat wifi in advanceIf you have a certain amount of installation experience, you can install the thermostat by yourself. If you have not done this kind of work, you can call a professional installer or call us remotely to help you install it!
