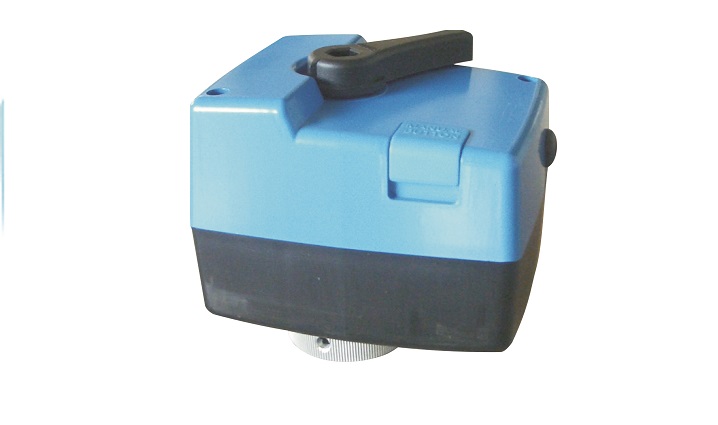

V7-03 Floating/0~10V Actuator

Accurately 0~10V or 4~20mA control the flow of hot water, or chilled water through coils and heat exchangers of all types, in a wide range of Heating, Ventilating, and Air Conditioning (HVAC) applications.

This V7-03 valve actuator works with V7-01 series DN15-DN25 valve body

Bi-directional permanent magnetic synchronous motor design has been proven reliable in millions of installations worldwide

Benifits

Safe:
The ON/OFF zone valves can be applied together with most Breeze Room Thermostats.
Manual Operation:

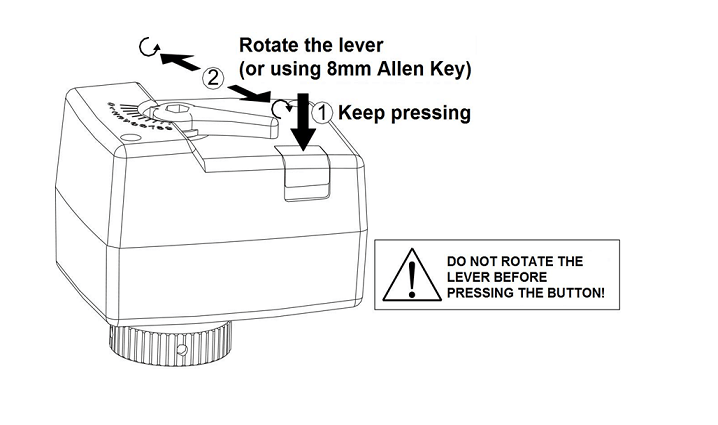

The motorized valve can be opened manually by lifting the manual opening lever over the stop and pushing slowly and firmly to the manual open position. The stop permits the valve to be locked in the open position.
Comfort:
Valve open percentage is accurately controlled by Breeze thermostat to achieve desired temperature and avoid any temperature sudden change
Easy:

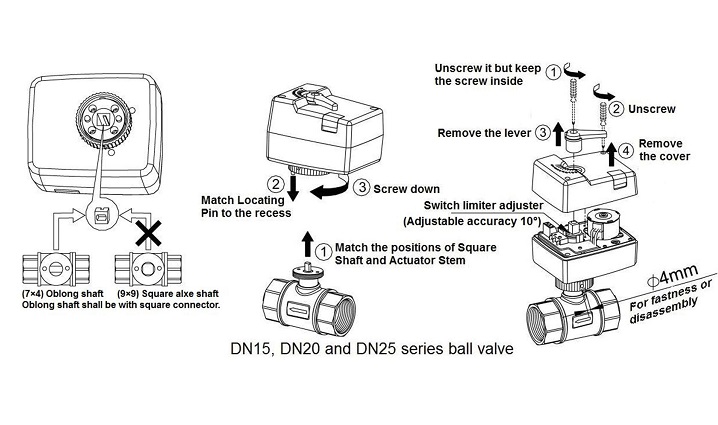

The actuator can be removed from the valve body quickly and easily, simplifying installation and servicing. No special linkage kit or commissioning is required.No special linkage kit is required.
Energy Saving:
0~10V signal control valve works with Breeze thermostat make precise temperature control and make energy cost saving upto 80%

Features

Feature V7-03 Actuator
Model No V7-03V24M V7-03V24 V7-03V220
Supply Voltage 24Vac 24Vac 220Vac
Frequency 50/60Hz
Valve Size work with V7-01 (DN15~DN25) series valve body
Power Consumption for Motors 4VA 3VA 5VA
Torque ≥4Nm
Open Time ≈45s (50Hz, 90 º)
Control type 0(2)~10VDC or 0(4)~20mA Floating
Feedback Signal 0(2)~10V DC(1mA)
IP Grade IP54
Ambient Temperature Operation Temperature -5~+50C
Storage and Transport Temperature −30 … 70C
Humidity Limits 95% Relative Humidity, Non-condensing
Working times 100,000 times
