Accurately 0~10V or 4~20mA control the flow of hot water, or chilled water through coils and heat exchangers of all types, in a wide range of Heating, Ventilating, and Air Conditioning (HVAC) applications.

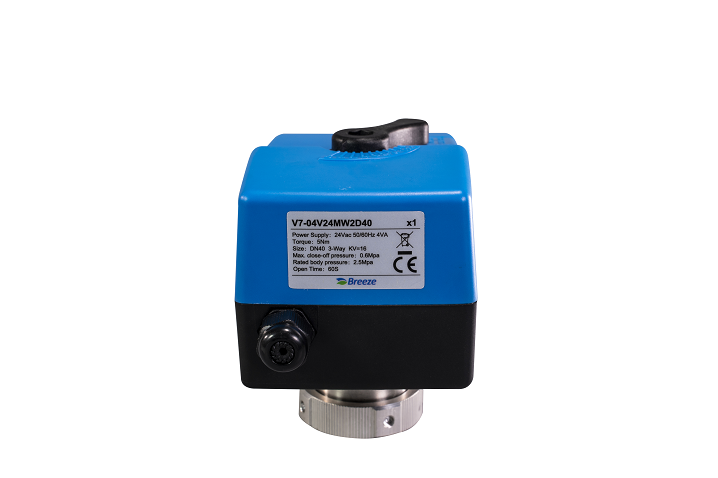

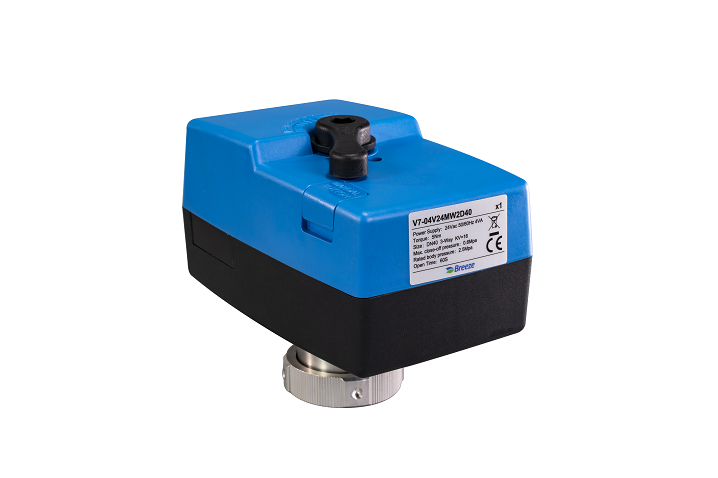

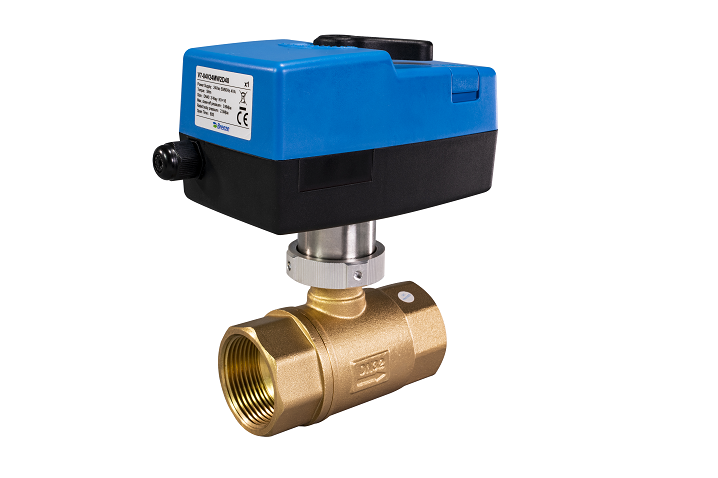

This V7-04 valve actuator works with V7-01 series DN32-DN50 valve body
Bi-directional permanent magnetic synchronous motor design has been proven reliable in millions of installations worldwide
Safe:
The ON/OFF zone valves can be applied together with most Breeze Room Thermostats.
Manual Operation:
The motorized valve can be opened manually by lifting the manual opening lever over the stop and pushing slowly and firmly to the manual open position. The stop permits the valve to be locked in the open position.
Comfort:
Valve open percentage is accurately controlled by Breeze thermostat to achieve desired temperature and avoid any temperature sudden change
Easy:

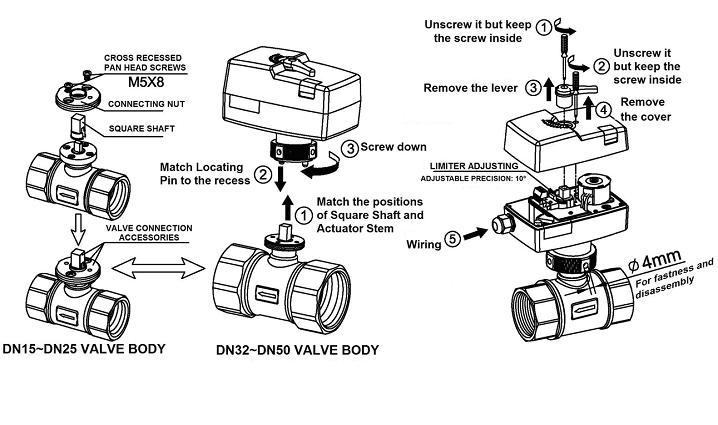

The actuator can be removed from the valve body quickly and easily, simplifying installation and servicing. No special linkage kit or commissioning is required.No special linkage kit is required.
Energy Saving:
0~10V signal control valve works with Breeze thermostat make precise temperature control and make energy cost saving upto 80%
